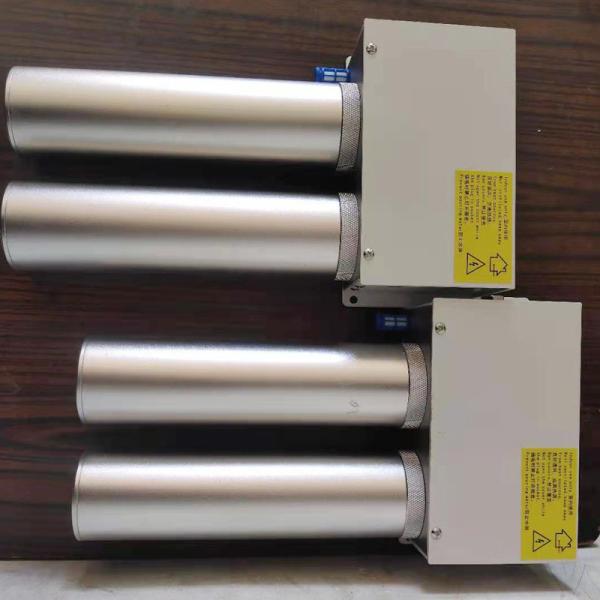

200L/Min Zero Purge Compression Air Compressor Desiccant Dryer For Dental Clinic
Unique
We are the factory, only produces the smallest air dryer, we are the only smallest air dryer manufacturers
Every year, 80% of the loss of pneumatic components are due to the use of unclean and not dry gas medium
But the general automation equipment of air consumption is only around 0.3 cubic minutes
The Air Dryer on the market is more than 1 cubic per minute, the volume is the size of a table, high prices, and difficult to match with automation equipment
Our adsorption dryer is suitable for automatic products, can be used as a pneumatic accessories, installed next to the automation equipment.
Product advantages
1.High quality adsorbent, stable dew point
* 30% residual filling is anti-aging, which can easily cope with short period of severe working conditions;
* 3.0mm diameter, larger active surface area, high strength, good water resistance
2.High reliability design, stable and reliable performance, minimal maintenance
* Excellent simplified design to ensure no less than 5.2 seconds of contact time;
* Layered dense filling process, low risk of adsorbent wear, long life, reliable dew point;
* with low risk of leakage, long life and less maintenance
Apply
Adsorption air dryer is suitable for flue gas detection, environmental detection and laboratory and other special requirements of the dryer, to meet the requirements of users to remove carbon dioxide, hydrogen sulfide in the product gas.
| Item No. | YS-1 | YS-2 | YS-3 |
| Dew Point Temperature | -40°C |
| Processing Capacity* | 100L/min | 200L/min | 400L/min |
| Regeneration Capacity | 15L/min | 30L/min | 90L/min |
| Power Voltage | 220v,50/60Hz(110v as customize) |
| Power | 10W | 10W | 10W |
| Working Pressure | 0.25≤P≤1.0MPa |
| Inlet Temperature | ≤35℃ |
| Inlet / Outlet connector | PT1/2 |
| Overall Dimensions | 192*436*86mm | 192*516*86mm | 242*586*126mm |
FAQ
Q1:Are you a factory or trading company?
A1: We are a factory.
Q2: Where does your factory locate?
A2:Our factory locates in Xiamen , nearby Xiamen port about 1.5 hours.
Q3:What are the warranty period of your machine?
A3: 1- year warranty for machine and technical support according to your requirements.
Q4: Which payment terms do you accept?
A4: T/T 30% in advance, and the rest paid before shipment or against B/L Copy.
Q5: How long is your production time?
A5: we can deliver it within 7-15 days. Customized item shipped out around 30 days.
Q6: Why should I choose you?
1. 24/7 after sales service support in different languages;
2. Follow up the feedback of products in 2 months interval by email;
3. Guidance of installation and debugging on-site can be provided by technicians;
4. Technical training for customers in BEISITE air compressor factory or working site; 5. Plenty of original spare parts with proven quality are all available from our central stocks in Guangdong Province and all distributors' depots.
